Introduction to IP

TCP and UDP

Both the TCP and UDP protocols are encapsulated inside the IP protocol, and are both common ways to move data.

They are also referred to as the transport layer, or as level 4 (of the OSI model).

Some of the capability that TCP and UDP provide is the ability for multiplexing, that is, having different applications at the same time.

Transmission Control Protocol

TCP is a connection oriented protocol because there is a formal process to begin and to end the connection. It also has “reliable” delivery, meaning it can recover from errors and manage out-of-order messages or re-transmissions.

Additionally, TCP incorporates flow control capability so that one side of a conversation, such as a server, can request a slow-down in data transmission.

TCP also carries out sequencing to ensure that data segments are processed in the correct order and that none are missing. It does this simply by looking at the sequence number in the TCP payload to ensure the final ordering is correct and not missing any parts.

The Three way Handshake

When a TCP connection is being established computers will implement a 3-way handshake.

1. The sender will send a syn (or synchronize) message to the destination host.
2. When received, the destination host will send back a syn-ack message to the source
3. Finally, the original sender will send ack

User Datagram Protocol

UDP is a connectionless oriented flow (or best effort traffic), wherein there is no formal open or close to the communication being sent. This implies that there is no acknowledgement from the receiving end of the data, and therefore cannot handle error recovery, data reordering, or re-transmissions.

In other words, we cannot tell that the data was received on the other side. There is no sequencing, no handshake, no acknowledgements, etc.

Note

It is possible to have error detection when using UDP, but this has to be implemented in the upper layers of the OSI.

Payloads

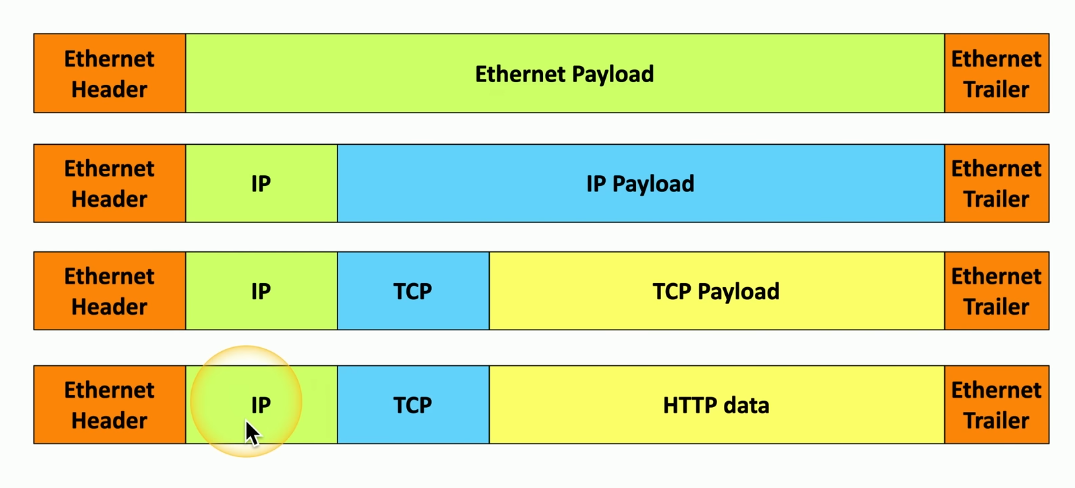

All the data travelling across an ethernet network is called a frame, which consists of an “ethernet header”, an “ethernet payload”, and an “ethernet trailer”.

The payload can have anything in it, but will often have an “IP header” and an “IP payload”. The IP payload itself might have data inside of it, which could include a “The TCP Header” and “TCP payload” or other such data, such as HTTP data.

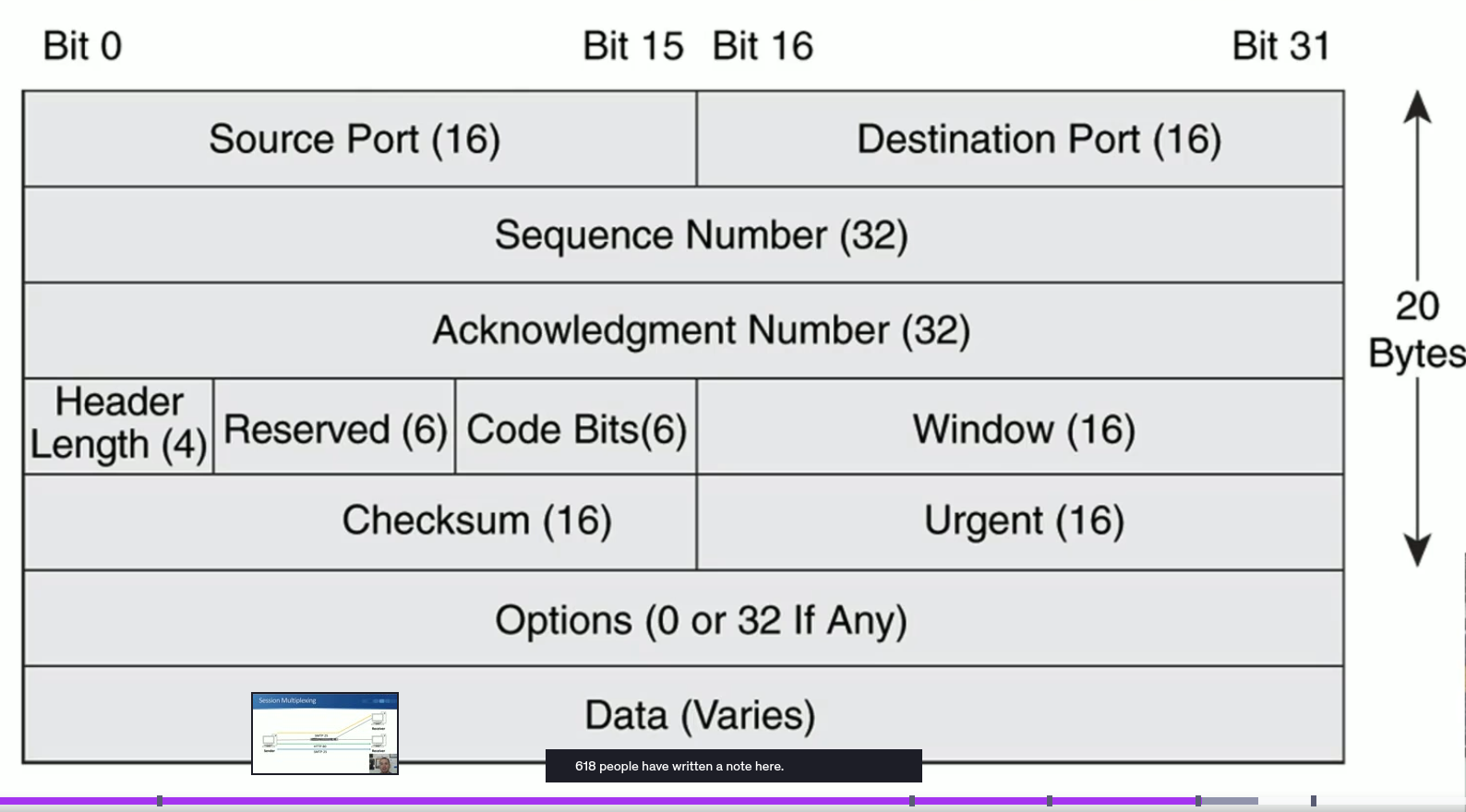

The TCP Header

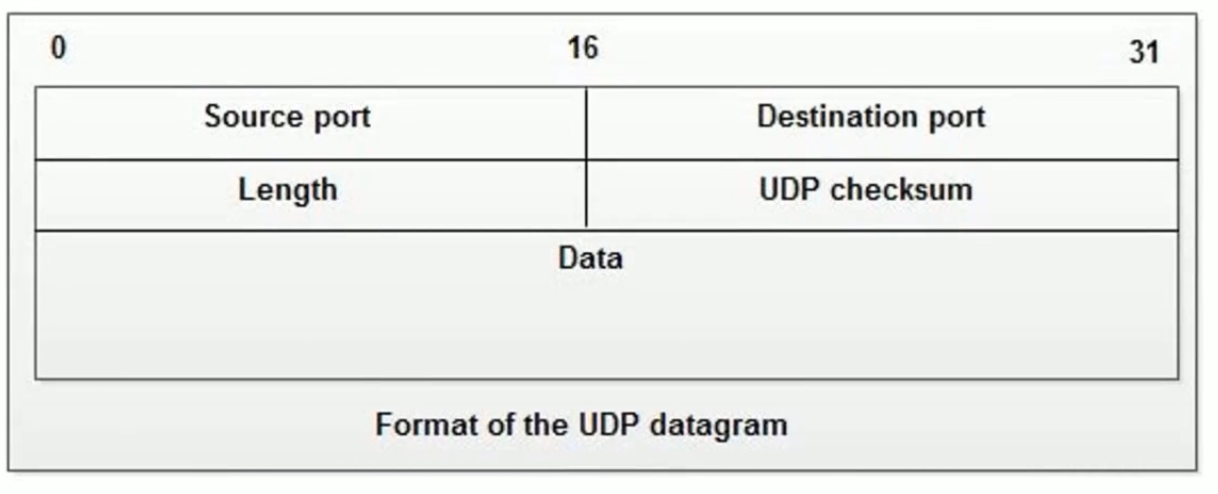

The UDP Header

Use cases

Although TCP has more error handling capability, UDP is more often use to ensure real-time communication, since the programs do not stop to consider your network state. Note that the decision to use one or the other is up to the application developer.

For example, in a phone call there is no way to catch an error and re-do a transmission: it is best to simply send the data and hope for the best. This is also the case for online multiplayer games, for example.

Some examples of UDP programs:

1. DHCP (Dynamic Host Configuration Protocol)
2. TFTP (Trivial File Transfer Protocol)

The implication of UDP is that the application sending the data must keep track of where data has been sent, and what to do after sending is complete.

Some examples of TCP programs:

1. HTTPS
2. SSH

In these, the sending gets an acknowledgement that the data was sent.

Note

There are some applications that can use both TCP and UDP, such as DNS (53)

Note

The port number is protocol specific. That is to say, we can have an application using tcp/53 and udp/53 at the same time. The port pools for each protocol are completely independent.

Speedy Delivery

Every computer in a network has an IP address. However, to figure out where on the server a particular piece of data must go to, port numbers are included as part of the IP protocol.

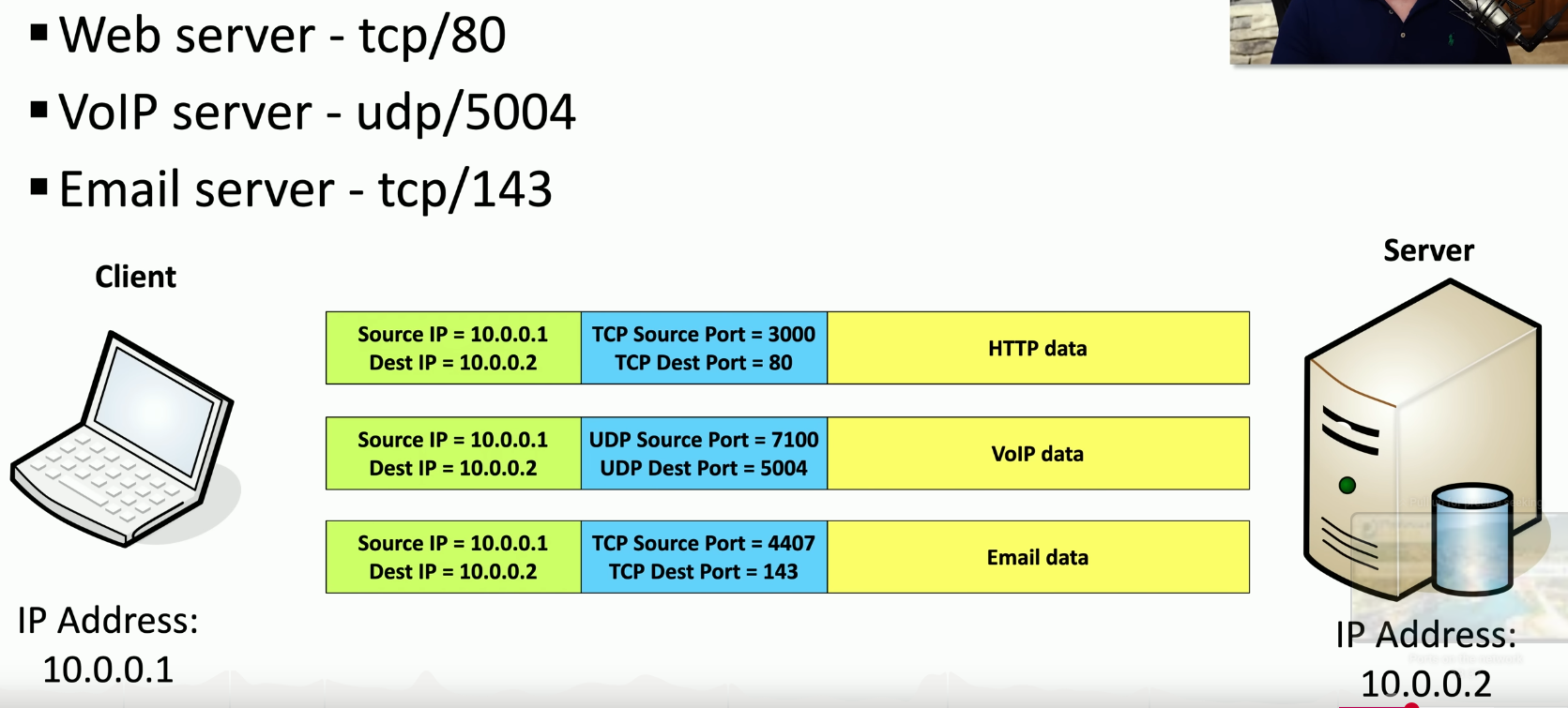

To manage all the traffic heading to various IP:Port combinations, we make use of IPv4 sockets, which include the following information:

1. IP address
2. Protocol
3. Port number

This information must be present for both client and server, since TCP is a two-way communication method.

Note that ports are for communication, not security.

Note that TCP port numbers != UDP port numbers. In other words, we can have something on TCP:80 at the same time as UDP:80, although it is not common.

Common network ports

Well-known port numbers are useful for clients and servers to match easily, as well as for firewall rules.

Port number	Protocol	Usage	Notes
tcp/20 (control) tcp/21 (active mode)	FTP	file transfers	Auth with password/username, though anonymous login may be allowed
tcp/22	SSH	Remove login	SSH sends all encrypted data
tcp/23	Telnet	Remove console	Not encrypted
tcp/25	SMTP	Mail transfer	Used for server to server email transfer, and to send mail from device to mail server
udp/53	DNS	Name resolution
udp/67 udp/68	DHCP	IP configuration
tcp/80	HTTP
tcp/443	HTTPS
tcp/110	POP3	Basic mail transfer	Post Office Protocol v3. USed to get emails from server, but not designed for multiple accounts
tcp/143	IMAP4	Mail transfers	Internet Message Access Protocol v4. Can manage email inbox from multiple clients
udp/137 (NetBIOS name services (nbname)) tcp/139 (NetBIOS session service(nbsession))	SMB/CIFS	file transfers	Server Message Block (also known as Common Internet File System), used by Windows Older systems use NetBIOS over TCP/IP (Network Basic Input/Output System) udp/137 is used to find the service by name, while tcp/139 is used to set up sessions and manage file transfers
tcp/445	SMB/CIFS	file transfers	Newer version of SMB that uses TCP-direct without NetBIOS
udp/161 (queries) udp/162 (traps)	SNMP	Network device statistics	Simple Network Management Protocol, used to get server data. Queries are made on udp/161, while configured threshold alerts are sent on upd/162 Comes in three versions: v1: structured tables, clear-text v2: data types, bulk transfers, clear-text v3: message integrity, encryption, authentication	!
tcp/389	LDAP	Lightweight Directory Access Protocol	Protocol to access directories. MS Active Directory is the most common version
tcp/3389	RDP	Remote Desktop Protocol	Standard used by Windows. Can be used to connect to an entire desktop or just an application	!

Flashcards

tcp/20:::FTP control tcp/21:::FTP active mode tcp/22:::SSH tcp/23:::Telnet tcp/25:::SMTP udp/53:::DNS udp/67:::DHCP udp/68:::DHCP udp/67 + udp/68:::DHCP tcp/80:::HTTP tcp/443:::HTTPS tcp/110:::POP3 tcp/143:::IMAP4 udp/137:::NetBIOS name discovery (nbname) tcp/139:::NetBIOS session and file transfer tcp/445:::SMB (new SMB versions that don’t use NetBIOS) udp/161:::SNMP queries udp/162:::SNMP traps tcp/389:::LDAP tcp/3389:::RDP

Auth with password/username, though anonymous login may be allowed ?? File Transfer Protocol → tcp/20 + tcp/21

Remote encrypted login ?? Secure Shell → tcp/22

Remote (un-encrypted) login ?? Telnet → tcp/23

Used for server to server email transfer, and to send mail from device to mail server ?? Simple Mail Transfer Protocol → tcp/25

Name resolution ?? Domain Name Resolution → udp/53 || tcp/53

Assign IP addresses to machines in network ?? Dynamic Host Configuration Protocol → udp/67 + udp/68

Used to get emails from server, but not designed for multiple accounts ?? Post Office Protocol v3 → tcp/110

Can manage email inbox from multiple clients ?? Internet Message Access Protocol v4 → tcp/143

nbname service to find servers by name prior to data transfer ?? NetBIOS → udp/137

Used by older SMB versions for data transfer sessions (nbsession) ?? NetBIOS → tcp/139

TCP-direct file transfers, commonly found on Windows ?? Server Message Block → tcp/445

Protocol manager design to query systems, usually used for network management ?? Simple Network Management Protocol → udp/161

Protocol agent design to for network management, designed to send alerts ?? Simple Network Management Protocol → udp/162

Protocol to access directories. MS Active Directory is the most common version ?? Lightweight Directory Access Protocol → tcp/389

Standard used by Windows. Can be used to connect to an entire desktop or just an application remotely ?? Remote Desktop Procotol → tcp/3389
